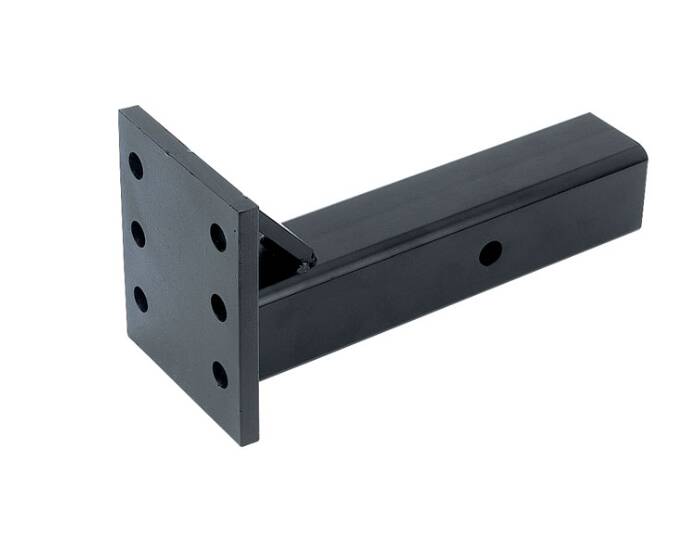

Draw-Tite Titan Pintle Hook Mounting Plate, Fits 2-1/2 in. Receiver, 12,000 lbs. Capacity • 45156

The Draw-Tite Titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 2-1/2 In. x 2-1/2 In. hitch box opening.  The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.

• BRAND: DRAW-TITE
• PART NUMBER: 45156
• WARRANTY: LIMITED LIFETIME WARRANTY
• FINISH: BLACK POWDER COAT
• TONGUE WEIGHT: 1,200 LBS.
• CAPACITY: 12,000 LBS.
• RECEIVER SIZE: 2.5 IN.
• PLATE SIZE: 6 X 5 IN.
• DRAW BAR MAXIMUM LENGTH: 7.75 IN.
• COLOR: BLACK
• DRILLING REQUIRED: NO
• MOUNTING HARDWARE INCLUDED: NO
• CLASSIFICATION: PINTLE HOOK MOUNT
• ATTACHMENT LOCATION: RECEIVER HITCH
• MOUNTING TYPE: RECEIVER HITCH
• MATERIAL: STEEL
• RECEIVER INCLUDED: YES
• LENGTH: 7-3/4 IN.
• DROP: 6 IN.
• RISE: 5 IN.
• HOLE SIZE: 3 IN.
