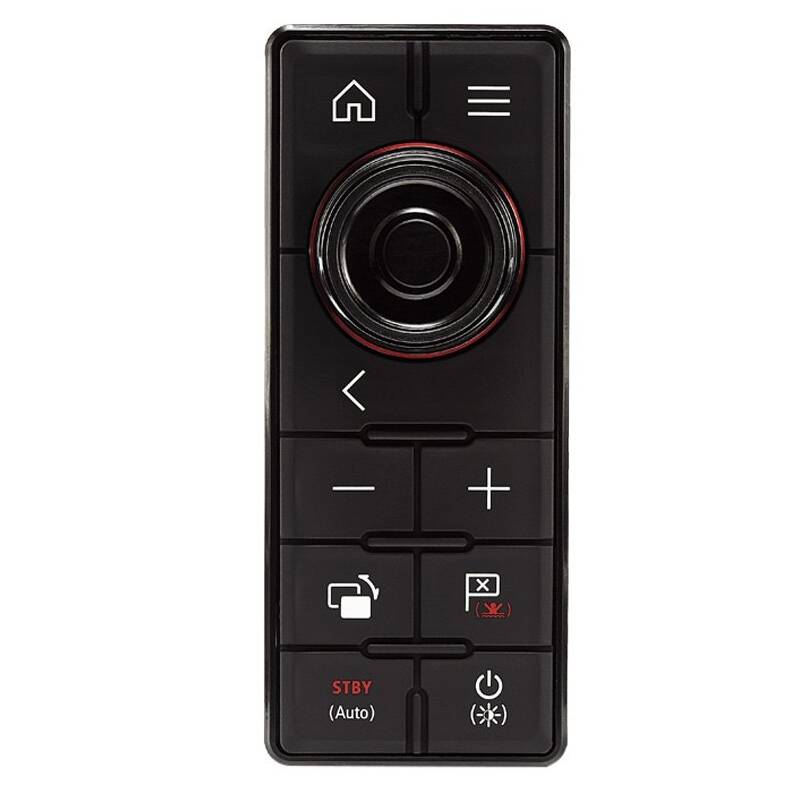

RMK-10 Portrait Remote Control by Raymarine. The new Raymarine RMK-10 Remote Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries, cSeries, eSeries, eS Series and gS Series Multifunction Displays (MFDs) from any mounting location.
PoE class: Class 1
Nominal supply voltage: 12 / 24VDC
Operating voltage range: 10.8VDC to 31.2VDC
Power consumption: 3.84 W
Operating temperature: -25°C to +55°C (-13°F to 131°F)
Storage temperature: -30°C to +70°C (-22°F to 158°F)
Relative humidity: Maximum 75%
Waterproof rating: IPX6
Network / power: 1 x RayNet connector (gS Series - 1000 Mb/s plus PoE) (aSeries , cSeries, eSeries - 100 Mb/s)
Alternate power: 1 x power connector
Includes:
- Keypad
- Portrait keypad mat
- Mounting gasket
- 4 x mounting fixings
- Documentation pack
- Right angled power cable 2m (6.6')
- RayNet network cable 2m (6.6')
