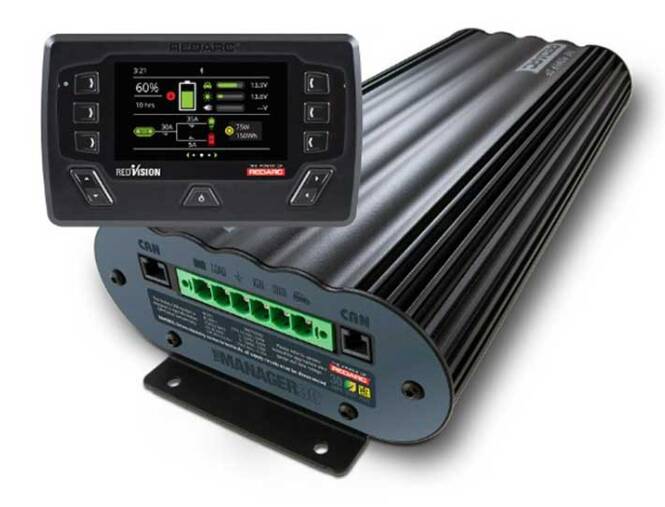

The Manager30 BMS1230S3R-NA is a battery management system featuring a color display and mobile phone connectivity for complete battery management for charging auxiliary batteries used in RV and overlanding vehicles.
- Multi-Stage AC-DC Battery Charger
- Multi-Stage DC to DC Charger
- Maximum Power Point Tracking Solar Regulator
- Improved, 4.3” color display battery monitor
- Bluetooth connectivity to monitor battery performance via mobile device
- Dual Battery Isolator
- Load Disconnect Controller
- Super quiet operation
- Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Specs:
BLUETOOTH COMPATIBLE: Yes
SUITABLE FOR 12V SYSTEMS: No
SUITABLE FOR 24V SYSTEMS: No
SOLAR INPUT VOLTAGE: 9 - 30V
MPPT SOLAR REGULATOR: Yes
CABIN/ CANOPY INSTALL: Yes
TRAILER INSTALL: Yes
ENGINE BAY INSTALL: No
MAX. CHARGING VOLTAGE: 14.4 - 16V (settings dependant)
OPERATING TEMPERATURE: -40°F to 176°F
OUTPUT VOLTAGE: 12V
MAX. RATED OUTPUT CURRENT: 30A
INPUT VOLTAGE: 9 - 30V DC
WEIGHT: 11.5 lb (5.2kg)
WIDTH: 7.3" (186 mm)
HEIGHT: 3.1" (78 mm)
DEPTH | LENGTH: 17.5" (445 mm)
