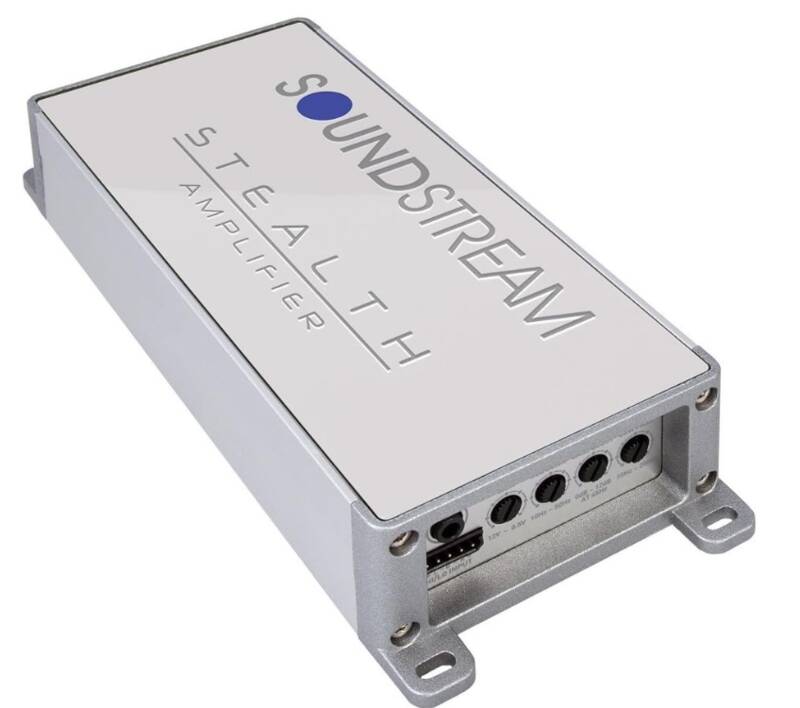

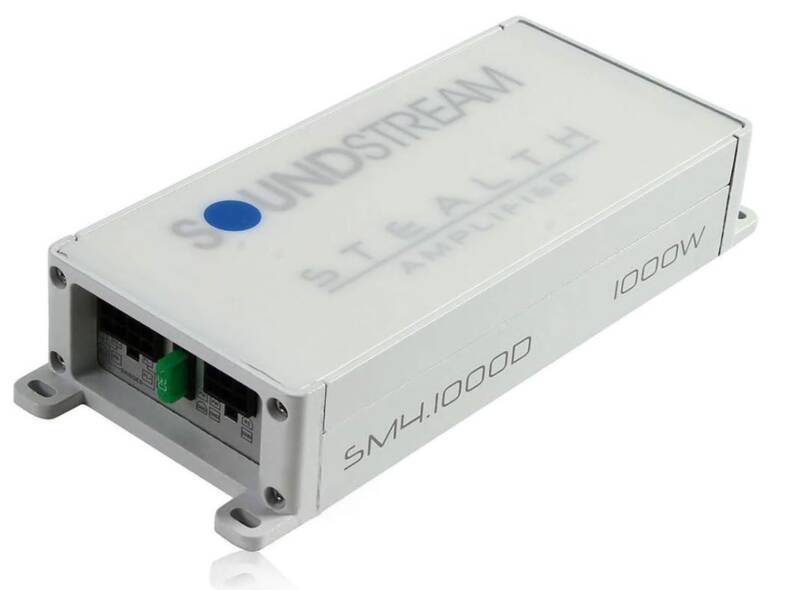

Soundstream 1000W Max 4 Channel Stealth Series Marine Grade Class D Amplifier • SM41000D

Don’t let these little monsters fool you. The latest and greatest class D full range technology allows us to pack 10 pounds of KICK YOUR ASS in less than 2-pound chassis. Once regarded as “dirty power,” class D’s stable performance, thanks to high power capability, maximum efficiencies, and low tolerance components, rivals traditional full-range applications. Minimal power requirements, ultra-micro footprint, unbelievable sound quality, and easy install make Marine Stealth amplifiers great for any car, motorcycle, boat, or off-road vehicle.

---

• Hybrid Aluminum Alloy Heatsink for Optimum Dissipation

• 2-ohm Stereo & 4-ohm Bridged Full Range Operation


• 2-ohm Minimum Impedance Monoblock Operation


• MOSFET Power Supply w/ Audiophile Grade IRTM Transistors


• Military Grade SMT PCB Maintains Dynamic Performance


• Direct Short, Thermal, & Overload Circuits Protect Amplifier


• 200mV-12V High Level or Low-Level RCA Input

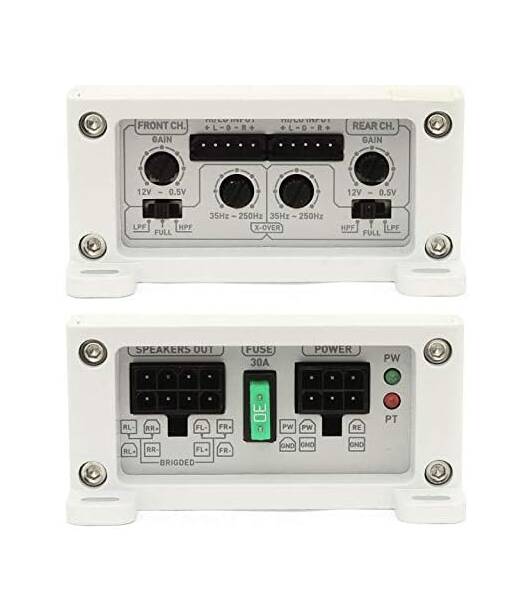

• Quick Disconnect RCA/High-Level Wire Harness


• Quick Disconnect Power and Speaker Output Harness


• Variable 12dB High Pass, Low Pass, & Subsonic Crossovers


---

• RMS Power 4Ω 90W x 4

• RMS Power 2Ω 125W x 4

• RMS Bridged 4Ω 250W x 2
